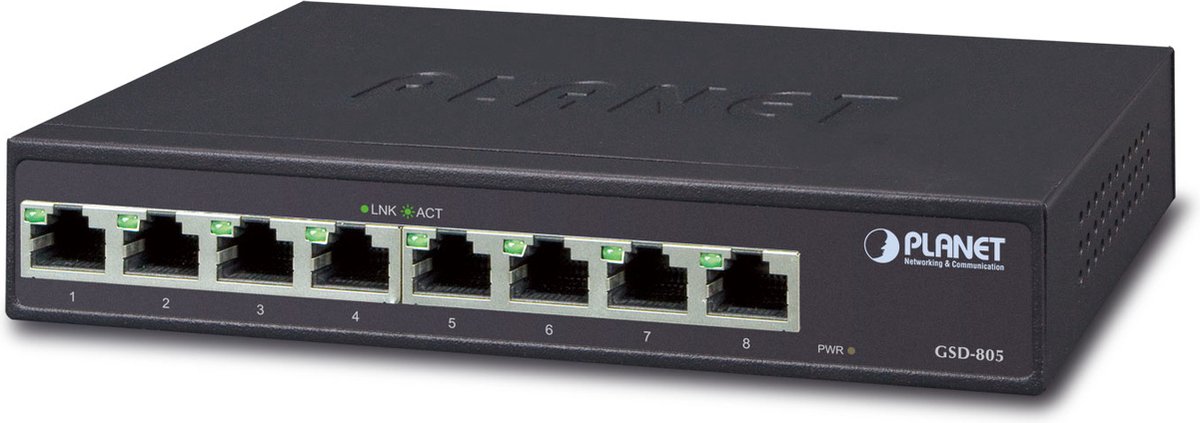

Planet 8-Port 1000Base-T Desktop Gigabit Switch Int. Power

14257GSD805PLANET 8-PORT 1000BASE-T DESKTOP GIGABIT SWITCH INT. POWER

8-Port 10/100/1000Mbps Desktop Gigabit Ethernet Switch (Internal Power)

For small palm size and desktop installation with internal power supply source, PLANET releases the new GSD-805 wall mountable 10/100/1000Mbps Gigabit Ethernet Switch, which provides non-blocking wire-speed performance and with new metal shape for desktop deployment in compact housing or SOHO application.

The GSD-805 has 4K MAC Address table and offers wire-speed packets transfer performance without risk of packet loss. The Gigabit ports with 9K jumbo packet support and with a 16Gbps internal switching fabric can handle large amounts of data transmission in a secure topology linking to a backbone or high-power servers. The high data throughput of the device makes it ideal for most Gigabit environments, especially for the network upgrading to a Gigabit environment.

All of the GSD-805 RJ-45 copper interfaces support 10/100/1000Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. Compliant with standard for Auto-MDI / MDI-X enables GSD-805 to detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
The Flow Control function of GSD-805 allows routers and Servers to directly connect to this device for fast, reliable data transfer.

Small Office / SOHO / Home Backbone Switch

With 8 RJ-45 10/100/1000Mbps ports for high-speed network connectivity and up to 16 Gigabits per second, non-blocking switch fabric, the GSD-805 can easily provide a local, high bandwidth, Gigabit Ethernet network for small Office, SOHO or home backbone applications.

Key Features

• Comply with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T Ethernet standard
• 8-Port 10/100/1000Mbps Gigabit Ethernet ports
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, llow control and auto-negotiation
• IEEE 802.3x flow control for full duplex operation and Backpressure for half duplex operation
• Integrated address look-up engine, support 4K absolute MAC addresses
• 1Mbit on-chip frame buffer
• 9K Jumbo packet support
• Automatic address learning and address aging
• Supports Auto MDI / MDI-X function
• Supports CSMA / CD protocol
• Internal power adapter 100-240V AC, 50/60Hz, 0.2A
• FCC, CE class A compliant

Specification

Model

GSD-805

10/100/1000Base-T Ports

8

Dimension (W x D x H)

191 x 85 x 26 mm

Weight

390g

Power requirement

Internal power 100-240V AC, 50/60Hz, 0.2A

Power Consumption / Dissipation

9.6 watts / 32 BTU

Switch Processing Scheme

Store-and-Forward

Address Table

4K entries

Share data buffer

1Mbit on-chip frame buffer

Flow Control

Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex

Switch fabric

16 Gbps

Throughput (packet per second)

1,9Mpps

Network cables

10/100/1000Base-T:

Cat. 3, 4, 5, 5e, 6 UTP cable (100meters, max.)

EIA / TIA-568 100-ohm STP (100meters, max.)

Standards Compliance

IEEE 802.3: Ethernet

IEEE 802.3u: Fast Ethernet

IEEE 802.3ab: Gigabit Ethernet

IEEE 802.3x: Full-duplex flow control

Temperature

Operating: 0~50 Degree C

Storage: -40~70 Degree C

Humidity

Operating: 5~90%

Storage: 5~90% (Non-condensing)

Regulation Compliance

FCC Part 15 Class A, CE
