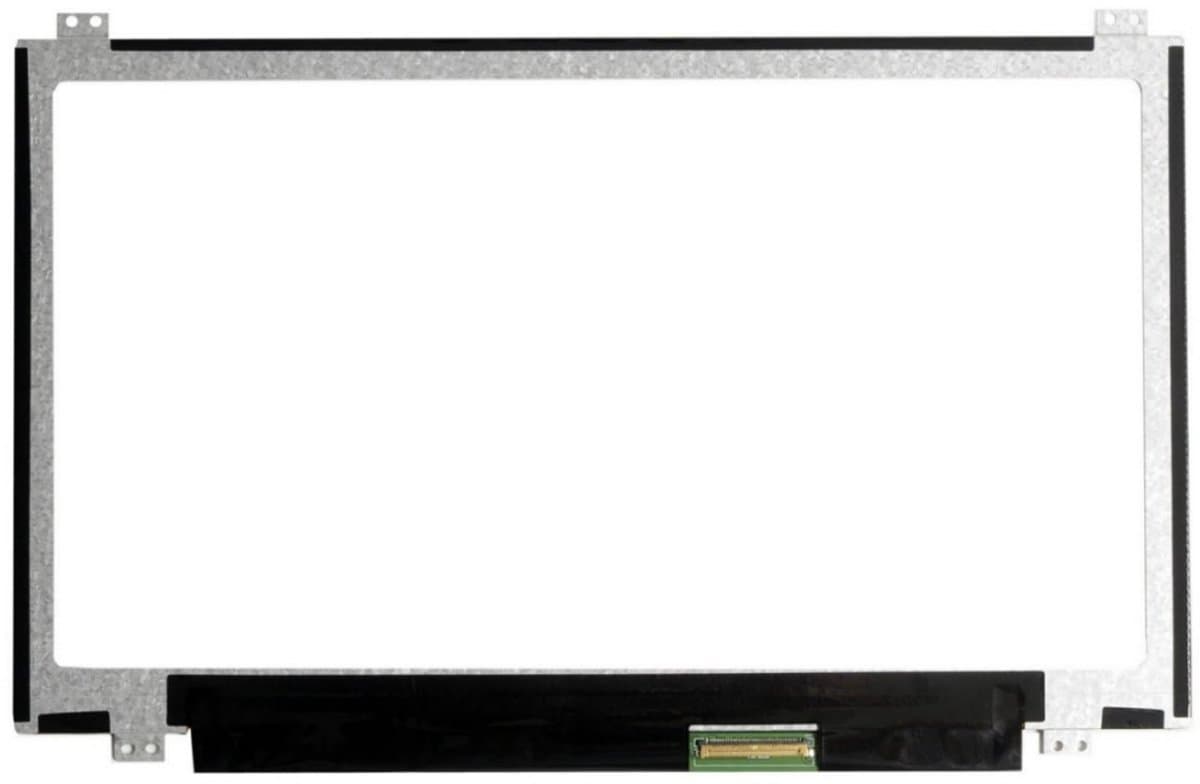

NT156WHM-N32 V8.0 15.6-inches HD LCD LED Laptop Screen Display (1366x768, 30 Pin)

" NT156WHM-N32 V8.0 15.6-inch 60Hz WXGA TN LCD Laptop Screen Display (1366×768, 30-Pin eDP)

The NT156WHM-N32 V8.0 is a 15.6-inch WXGA TN laptop screen designed to provide reliable performance and clear visuals for everyday computing tasks. With a crisp 1366×768 resolution and optimized for standard office, study, and casual multimedia use, this panel offers smooth display output while ensuring energy efficiency. Built with trusted manufacturing standards, it is perfect for replacing damaged or worn-out screens without compromising quality.

Technical Specifications

• Model Number: NT156WHM-N32 V8.0

• Screen Size: 15.6 inches (Diagonal)

• Panel Type: a-Si TFT-LCD, LCM (TN – Normally White, Transmissive)

• Resolution: 1366 × 768 (WXGA), 100 PPI

• Aspect Ratio: 16:9

• Surface Treatment: Glare (Haze 0%)

• Brightness: 220 nits (Typ.)

• Contrast Ratio: 500:1 (Typ.)

• Supported Colors: 262K, 45% NTSC

• Viewing Angle: 45°/45°/20°/40° (L/R/U/D, CR≥10)

• Response Time: 12 ms (Typ., Tr+Td)

• Refresh Rate: 60Hz

• Backlight Type: WLED (9S4P, 15,000 hours, with LED driver)

• Interface: eDP (1 lane), eDP 1.2, RBR (1.62G/lane), 30-pin connector

• Operating Voltage: 3.3V (Typ.)

• Outline Dimensions: 359.5(W) × 223.8(H) × 3.2(D) mm

• Active Area: 344.232(W) × 193.536(H) mm

• Operating Temperature: 0°C ~ 50°C
