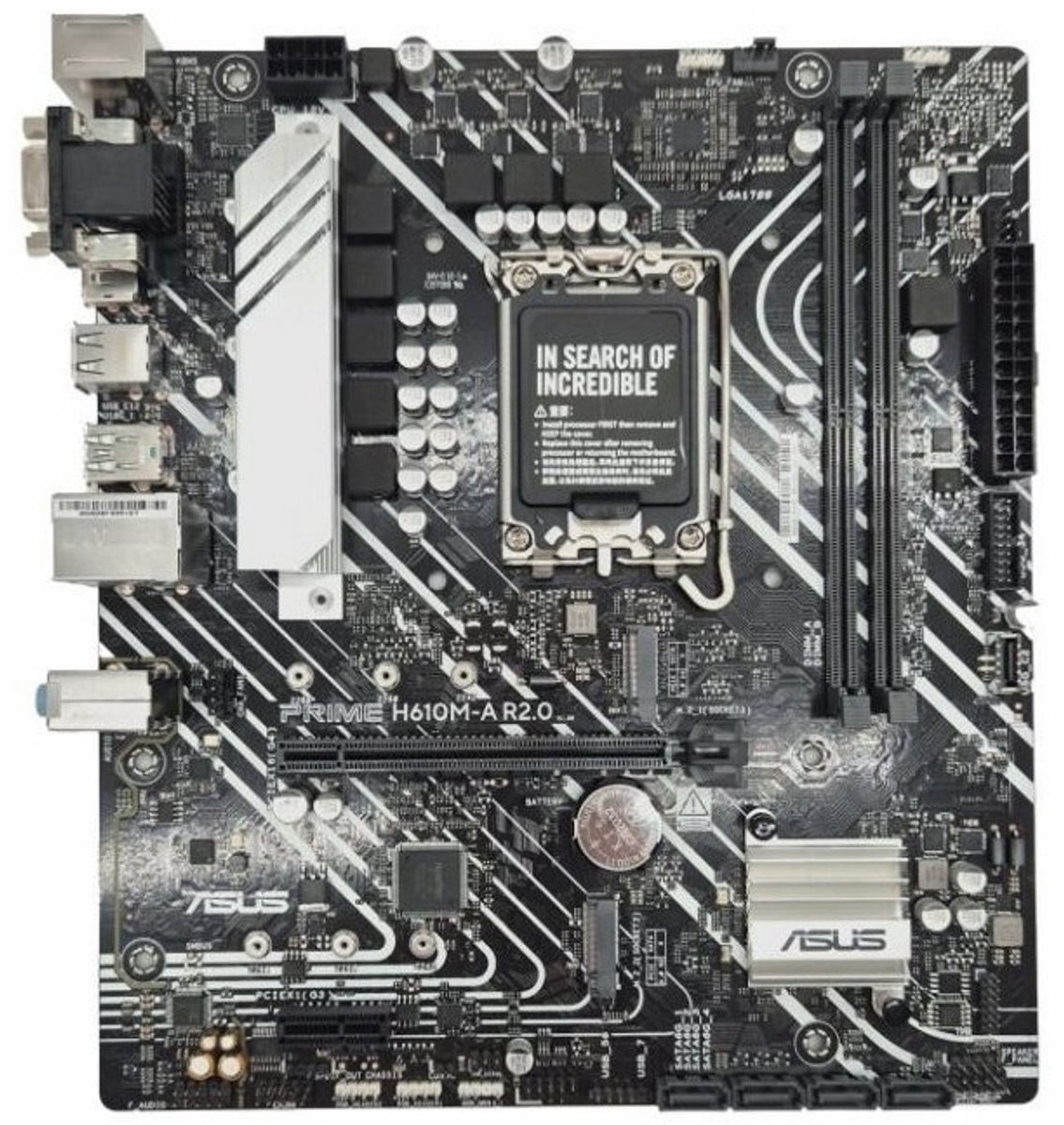

Motherboard Asus 90MB1MJ0-M0EAY0 H610

If you are looking for new market trending items, we present the Motherboard Asus 90MB1MJ0-M0EAY0 H610!

• Type: Motherboard
• Chipset: H610

The Asus PRIME H610M-A R2.0 is a motherboard that offers two M.2 slots supporting data transfer speeds of up to 32 Gbps via PCIe 3.0, enabling faster boot times and application load times for operating systems and application drives. It differs from the Asus Prime H610M-A in that it features USB-C.

Processor

• Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*

Chipset

• Intel® H610

Memory

• 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Unbuffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)

Slots

• 1 x PCIe 4.0 x16 slot
• 1 x PCIe 3.0 x1 slot

Graphics

• 1 x DisplayPort
• 1 x VGA port
• 1 x HDMI

Storage

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
• 4 x SATA 6Gb/s ports

USB

• 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports 1 USB 2.0 port
• 1 x USB 2.0 header supports additional 2 USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

Connectivity and networks

• 1 x Intel® 1Gb Ethernet
• ASUS LANGuard
• Vertical M.2 slot only (Key E, CNVi & PCIe)

Internal Connectors

• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports 1 USB 2.0 port
• 1 x USB 2.0 header supports additional 2 USB 2.0 ports
• 3 x Addressable Gen 2 headers
• 2 x AURA RGB headers
• 1 x Clear CMOS header
• 1 x Front Panel Audio header (AAFP)
• 1 x COM Port header
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1 pin)
• 1 x 10-1 pin System Panel header

Rear Connectors

• 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x VGA port
• 1 x HDMI™ port
• 1 x Vertical M.2 slot (Key E)
• 1 x Intel® 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard (purple) port
• 1 x PS/2 Mouse (green) port

Form factor

• mATX (24.4 cm x 21.6 cm)
