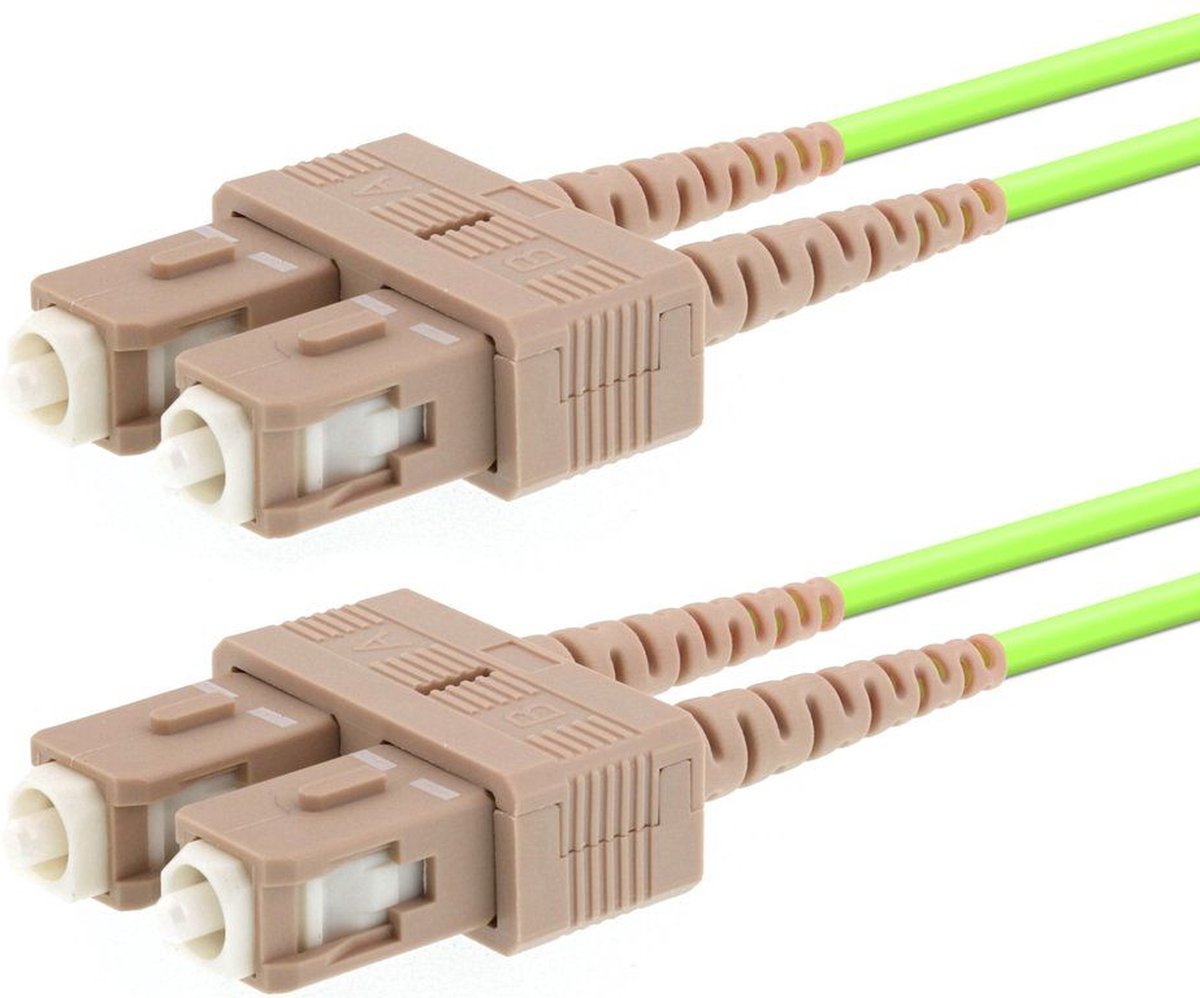

Logon Fiber Patch Cable 50/125 - Sc/Sc 3M - Om5

Model: Logon Professional AL5SCSC03I/5I (3m)

Wideband OM5 bend insensitive Multimode Fibre SC/SC

WideBand OM5 Bend Insensitive Multimode Fibre is a 50µm laser-optimized multimode fibre designed for short wavelength division multiplexing (SWDM) applications. Unlike

traditional OM4 fibre with high bandwidth performance in a narrow band centred at 850nm, WideBand OM5 Bend Insensitive Multimode Fibre delivers OM4 performance in the 850-950nm window while maintaining compatibility with current multimode fibres.

WideBand OM5 and multi-wavelength transceivers are a viable solution for future 100Gb/s and 400Gb/s multiwavelength systems. WideBand OM5 Bend Insensitive Multimode Fibre complies with or exceeds ISO/IEC 11801 OM5 specification, IEC 60793-2-10 type A1a.4 Optical Fibre Specification, and TIA/EIA-492AAAE detail specification.

Features

• Designed for multi-wavelength systems
• Duplex transmission of 40/100/400 Gb/s using SWDM technology
• Maintaining compatibility with current OM4 multimode optical fibre
• Supports today's application including 100Gb/s Ethernet
• Very low macro-bending sensitivity
• Supports installation with small cable bend radii and compact organizers.
• Coated with proprietary dual layer UV curable acrylate
• Optimized performance in tight-buffer cable applications
• High resistance to micro-bending Stable performance over a wide range of
• environmental conditions
• SC/SC connectors
• Lenght: 3 meters

Specifications

Geometry Characteristics

• Core Diameter: 50 ± 2.5 [pm]
• Core Non-Circularity: < 5.0 [%]
• Cladding Diameter: 125.0 ± 0.8 [Mm]
• Cladding Non-Circuiarity: < 0.6 [%]
• Coating Diameter: 245 ± 7 [Mm]
• Coating/Ciadding Concentricity Error: < 10.0 [pm]
• Coating Non-Circularity: < 6.0 [%]
• Core/Ciadding Concentricity Error: < 1.0 [pm]
• Delivery Length: Up to 8.8 [km/reel]

Optical Characteristics

• Attenuation:
• 850nm: < 2.4 [dB/km]
• 953nm: < 1.7 [dB/km]
• 1300nm: < 0.3 [dB/km]
• Overfilled Modal Bandwidth:
• 850nm: > 3500 [MHz km]
• 953nm: > 1850 [MHz km]
• 1300nm: > 500 [MHz km]
• Effective Modal Bandwidth:
• 850nm: > 4700 [MHz km]
• 953nm: > 2470 [MHz km]
• Application support distance on
• 40 & 100 Gigabit Ethernet: 850nm: 200 [m]
• 10GBASE-SR: 850nm: 600 [m]
• 1000BASE-SX: 850nm: 1100 [m]
• Numerical Aperture: 0.200 ± 0.015
• Group Refractive Index:
• 850nm: 1.482
• 1300nm: 1.477
• Zero Dispersion Wavelength, ?o: 1297-1328 [nm]
• Zero Dispersion Slope, So: < 4(-103) /(840(1-( ?o/840)4)) [ps/(nm2 km)]
• Macrobending loss*:
• @850nm:
• 2 turns @15mm radius < 0.1 [dB]
• 2 turns @7.5mm radius < 0.2 [dB]
• @1300nm:
• 2 turns @15mm radius < 0.3 [dB]
• 2 turns @7.5mm radius < 0.5 [dB]

Backscatter Characteristics (850nm & 1300nm)

• Step (Mean of bidirectional measurement): < 0.10 [dB]
• Irregularities over fibre length and point discontinuity: < 0.10 [dB]
• Attenuation uniformity: < 0.08 [dB/km]

Environmental Characteristics (850nm & 1300nm)

• Temperature Cycling at -60°C to +85°C: < O.10 [dB/km]
• Temperature-Humidity Cycling at -10°C to +85°C and 4% to 98% RH < 0.10 [dB/km]
• Water Immersion at 23°C for 30 days: < 0.10 [dB/km]
• Dry Heat at 85°C for 30 days: < 0.10 [dB/km]
• Damp Heat at 85°C and 85% RH for 30 days: < 0.10 [dB/km]

Mechanical Specification

• Proof test:
• > 9.0 [N]
• > 1.0 [%]
• > 100 [kpsi]
• Coating strip force:
• typical average force: 1.5 [N]
• peak force: >1.3 < 8.9 [N]
• Dynamic stress corrosion susceptibility parameter (Nd , typical): 27

* : The Launch condition for the macrobending loss measrement fulfils that described in IEC 61280-4-1.
