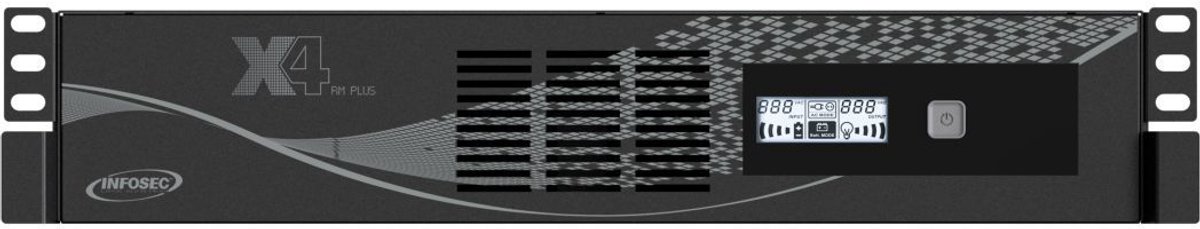

Infosec X4 Rm Plus - 1000Va Ups

Model: Infosec X4 RM PLUS - 1000 VA

PC & IT systems for SME's

X4 RM Plus range (19 rackmount UPS), is ideal to efficiently protect the power supply to the data processing hardware and your data against damage caused by electric disruptions.

High-performance protection

Equipped with Line Interactive technology controlled by microprocessor, X4 RM Plus range offer to your devices an effective and high-quality protection.

In the event of a power cut, the connected devices are powered on until 65 minutes depending on the connected load, that ensure continuity of service and, if necessary, allows the save of the essencial data.

Cost-effective and green functions

• Built-in charger reducing the battery charging time and enabling them to be charged to 90% capacity in just 4 hours. In this way, a maximum recharge can be guaranteed between successive power cuts
• X4 RM Plus automatic restart when mains power restored
• Cold start feature for start-up with no power supply
• Batteries charge up as soon as there is a power supply
• These feature allow to the X4 RM Plus to saves 50% more energy than a normal UPS

Cost-effective and green functions

Each model is equipped with IEC and FR/SCHUKO outlets.

USB communication port enable remote control of the UPS using InfoPower software (see description on back) which also manages automatic extinction in the event of a long power cut.

X4 RM Plus offer Tel/ADSL line protection thanks to its connectors RJ45.

Essential assets

• A single On/Off switch
• An LCD screen shows the detailed status of the UPS
• Thanks to its rack format, X4 RM Plus can be easily integrated in a 19 rackmount server cabinet

Technical Characteristics

General Characteristics

• Technology: Line Interactive controlled by microprocessor
• Power: 1000 VA / 600 W
• IEC outlets: 8
• FR/SCHUKO outlets: 2

PROTECTION & FILTERING

• Output form: Modified Sinewave
• Protection: Discharge / Overcharge / Overload
• Input protection: Fuse
• Tel/ADSL line protection: RJ45 (1-IN/1-OUT)

PHYSICAL CARACTERISTICS

• Dimensions - HxWxD (mm): 300 x 440 x 88
• Net weight kg: 11.3

INPUT TECHNICAL CHARACTERISTICS

• Voltage: 220 VAC
• Voltage range: 162-268 VAC
• Frequency: 50/60 Hz (auto detection)

OUTPUT TECHNICAL CHARACTERISTICS

• Voltage: 220 VAC
• Automatic voltage regulation: ± 10%
• Frequency: 50 Hz ± 1 Hz
• Crest ratio: 3:1

BATTERY

• Battery charger: Operates when UPS is connected to mains
• Cold start (no mains): Yes
• Charging voltage: 27.4+/-1V
• Recharging time: 4-6 hours to 90% after complete discharge
• Backup time (1 PC): 30 min

INDICATOR

• LCD Touch: AC mode, battery mode, load level, battery level, input voltage, output voltage, overload, fault & low battery

COMMUNICATION

• Communication port: USB
• Software: InfoPower (supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, 8, 10, Linux, Unix et MAC)

ENVIRONNMENT

• Ideal Environment: 0-40°C, 0-90% of relative humidity (without condensation)
• Noise level: < 40 dB

NORMS

• Standard: CE RoHS
• EMC (Electromagnetic compatibility): EN 62040-2:2006; EN 61000-3-2:2006+A1:2009+A2:2009; EN 61000-3-3:2013; EN 61000-4-2:2009; EN 61000-4-3:2006+A2:2010; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004; EN 61000-2-2:2002
• Low voltage (security): EN 62040-1:2008 + A1: 2013
