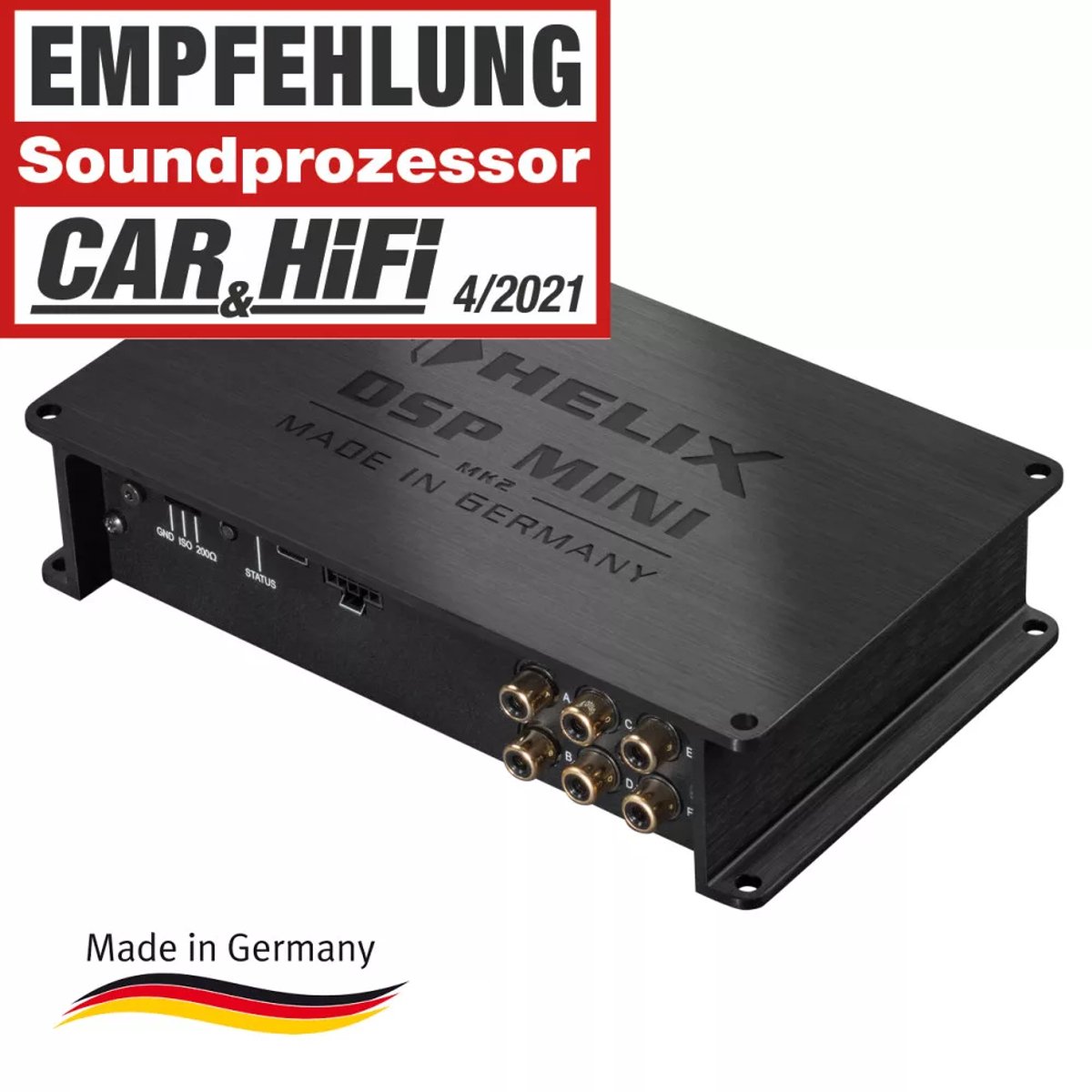

Helix DSP MINI MK2 6 kanaals DSP / Auto Digtal Sound Processor

info:

• Compact DSP Processor 4 channels in / 6 channels out
• Includes fixed-point 64 Bit audio DSP
• BurrBrown A/D and D/A converters
• 96 kHz sample rate for High-Res audio with bandwidth up to 44 kHz
• ACO with ISA (input signal analyzer and input EQ
• 4x RCA / Cinch
• 4x High-level speaker input
• 1x Optical SPDIF (12 - 96kHz)
• 1x Remote in
• 6x RCA / Cinch output
• Output voltage: 6 Volts
• 1x Remote out
• Extras: HEC Slot, Smart Control Port, ADEP.3, Auto remote switch
• Finish: black

Helix DSP Mini MKII specifications:

• Frequency range10 - 44,000 Hz
• Signal/Noise Ratio107 dB(A)
• Distortion<0.002%
• Input sensitivity (Low Level)2 - 4 V
• Input sensitivity (High Level)5 - 11 V
• Supply voltage 9.6 - 17 V
• Dimensions (l x w x h)40 x 177 x 104 mm
• High Level Input
• High Level Input with Autosense
• Optical Input
• Input Delay
