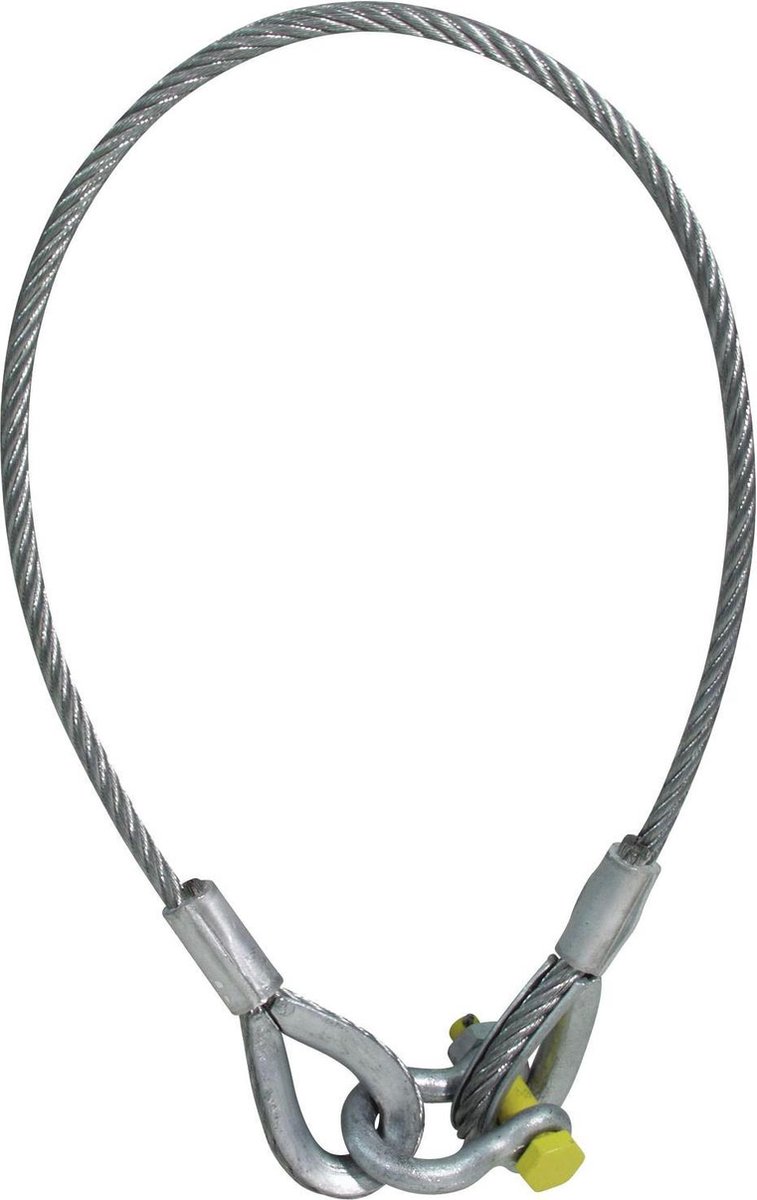

EUROLITE Lifting rope 1000x10mm

EUROLITE Lifting ropes, safety bonds
The EUROLITE lifting ropes, safety bonds comply with the current regulation of the German professional insurance association as summed up in BGI 810-3:2007-03 Loads above persons. The lifting ropes, safety bonds are constructed in accordance with the European standards DIN EN 12385-4:2008-06 and DIN 56927:2009-03.
The lifting ropes, safety bonds are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.
Clearly, every user can install and secure loads above persons with these lifting ropes, safety bonds in all areas where the BGV C1 is required.
Use as attachment gear
These ropes are stamped with a WLL describing the maximum load when used for general lifting purposes. For all areas where the BGV C1 is required, the correct lifting rope must be selected only by calculating with safety-factor 12. According to this calculation, the maximum load of this rope is 450 kg (single-stranded).

Installation rope, safety bond, safety

Round strand rope 6 x 19 with fibre core
With two thimbles
Suitable for installing and securing loads above persons
16 mm shackle included in the delivery
10 x 1000 mm
WLL 1050 kg
Test report according to DIN EN 10204 as download
Maximum load WLL (5-fold):
1050 kg

Maximum load BGV C1 (12-fold):
450 kg

Maximum load (safety):
100 kg

Temperature range:
-40° C to +100° C

Rope length:
1 m

Rope diameter:
10.00 mm

Rope type:
Round strand rope

Rope construction:
6 x 19 FC

Standard:
DIN EN 12385-4:2008-06, DIN 56927:2009-03

Nominal tensile strength:
1770 N/mm²

Strength classification:
1770

Wire surface:
Zinc-plated

Mass:
0.359 kg/m
