EUROLITE Complete lichtsets LED KLS-180

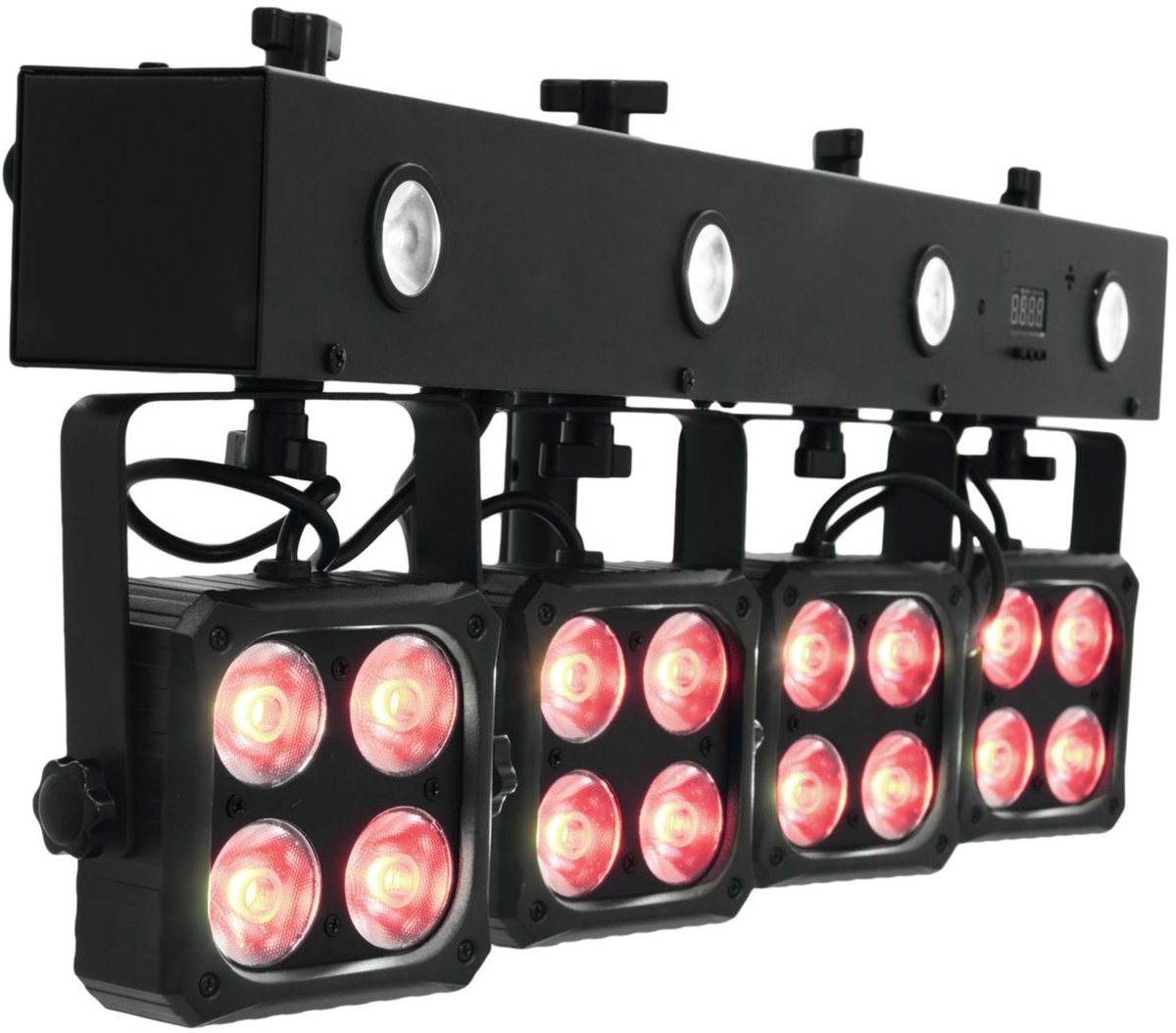

Bar with 4 RGBW spots and 4 white strobe LEDs, with 5-pin QuickDMX connector

Crossbar with integrated DMX control unit and stand sleeve
Ultra-light ideally suited for mobile use
Ideal for bands, stages or solo entertainers
Suited for installation on a speaker stand (not included) or truss
Comes pre-assembled with practical transport bag
4 quadcolor (4in1) LEDs per spot provide for an exquisite RGBW color mix
Strobe effect with 4 white 1 W LEDs
Movable and tiltable spotlights
Via DMX, each spot can be individually controlled
DMX-controlled operation or stand-alone operation with Master/Slave function
Sound-control via built-in microphone, microphone sensitivity adjustable
Supports QuickDMX - the wireless DMX-system from Eurolite
Built-in phantom fed socket for QuickDMX receiver (see accessories)
DMX512 control via any commercial DMX controller (occupies 21 channels)
3, 4, 8 or 21 DMX channels selectable
Flicker-free projection
Functions: RGBW color mixture, color presets, built-in programs, strobe effects with variable speed, dimmer, sound-control, Master/Slave operation
Addressing and setting via control panel with 4-digit LED display
Additional controlling possibility via the EUROLITE IR-7 remote control, included in delivery
Black lacquered metal version with movable mounting bracket
Convection cooling entirely via cooling ribs, no fans, particularly quiet during operation
Switch-mode power supply for operation between 100 and 240 volts
Feed-through output allows to power up to 8 devices
Ready for connection via IEC power cord with safety plug
Power supply:
100-240 V AC, 50/60 Hz

Power consumption:
80 W

DMX channels:
3/4/8/21

DMX connection:
3-pin XLR

QuickDMX connection:
5-pin XLR

Sound-control:
via built-in microphone

LED type:
8 W QCL / 1 W

Number LEDs:
16 RGBW, 4 white

Beam angle:
9°

Dimensions (W x D x H):
600 x 140 x 230 mm

Weight:
4 kg

Ecodesign regulation:
Yes

Special product:
Not designed for household room illumination

Purpose:
Show effect lighting
