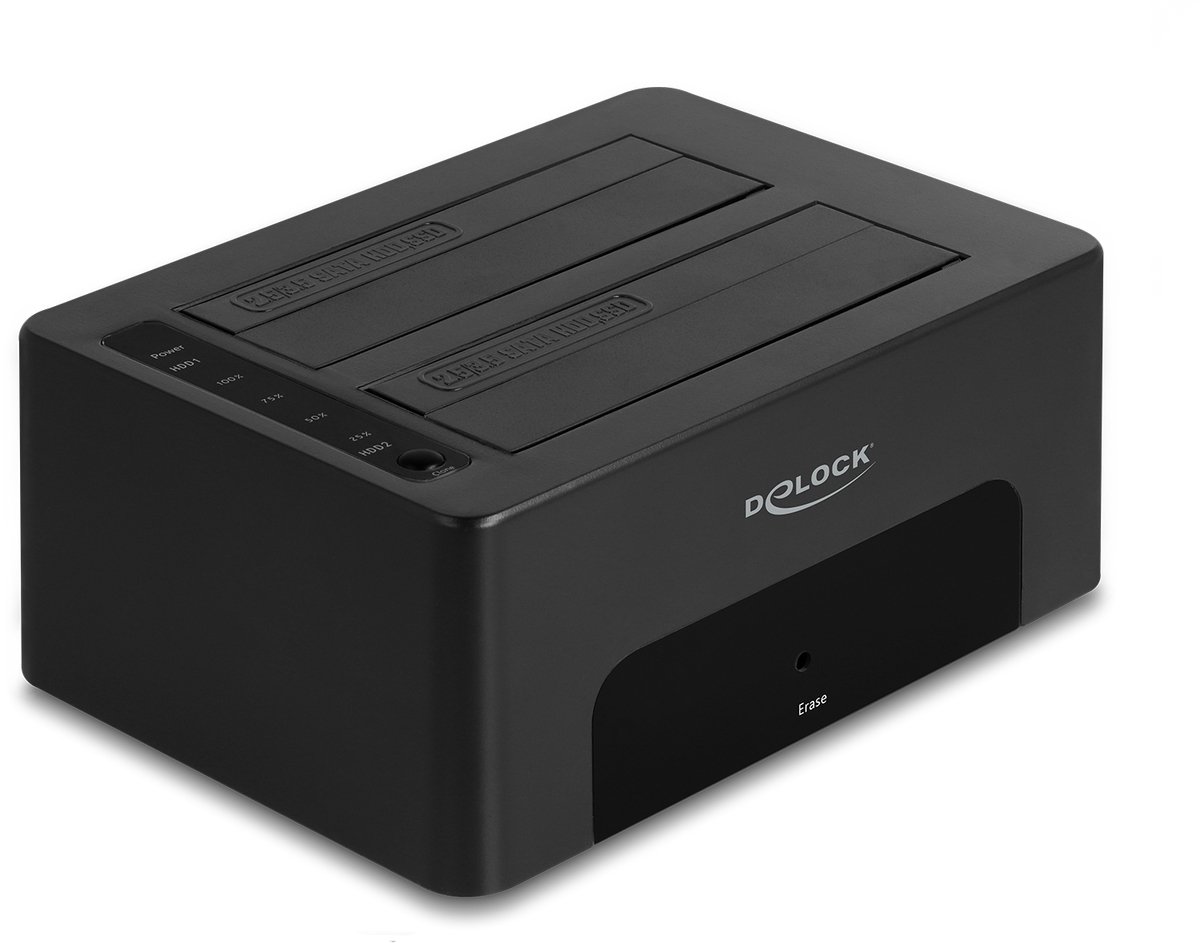

Delock USB Dual Docking Station for 2 x SATA HDD / SSD with Clone and Erase Function

Description

This docking station by Delock enables an external connection of up to two 2.5″ or 3.5″ SATA HDDs or SSDs through the USB interface. This solution does not require an external enclosure since the drive can be plugged into the docking station directly.

Clone and erase function
The clone function enables to copy the content of one HDD to another without using a PC. No connection to the computer is required for the erase function. Selectively one drive or two drives can be deleted at the same time.

Specification

• Connectors:
1 x USB 5 Gbps Type-B female
2 x SATA 6 Gb/s 22 pin receptacle
1 x DC jack
• Chipset: Asmedia ASM1156
• Function key:
1 x Clone button
1 x Erase button
1 x On / Off switch
• Erase procedure: overwrite the entire memory with “0”
• For 2.5″ and 3.5″ SATA HDD / SSD
• Suitable for all SATA HDDs up to SATA 6 Gb/s
• Data transfer rate up to 5 Gbps
• LED indicator for power, access and copy / erase status
• Dimensions (LxWxH): ca. 153 x 110 x 62 mm
• Plug & Play

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.5 A
• Output: 12.0 V / 3.0 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 10 mm

System requirements

• Chrome OS
• Linux Kernel 5.13 or above
• Mac OS 12.4 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-A port

Package content

• Docking station
• Cable USB Type-A male to Type-B male, length ca. 80 cm
• External power supply 12.0 V / 3.0 A
• User manual
