EAN: 4043619629961

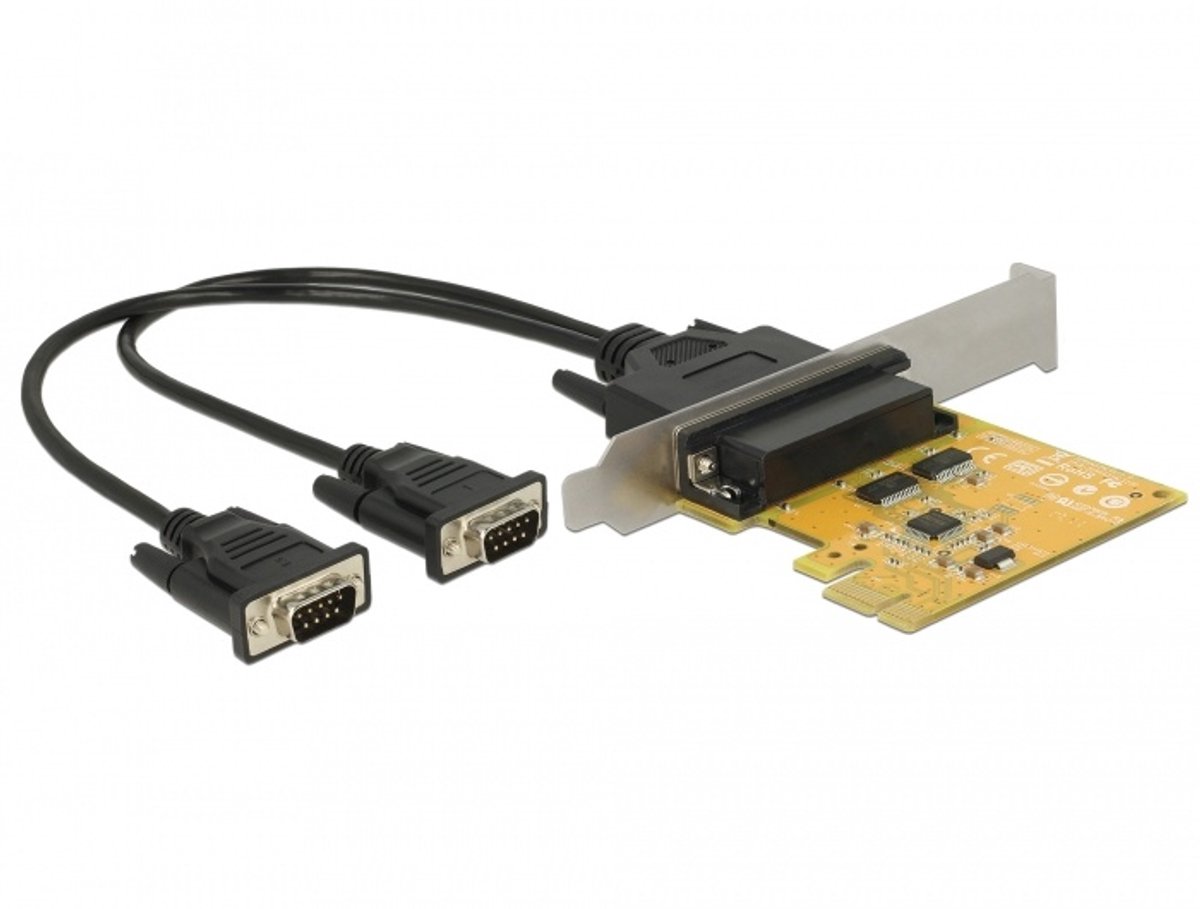

This PCI Express card by Delock expands the PC by two external serial RS-232 High-Speed ports. Different devices such as gateways, plotters, printers, line extender, dongles or embedded modules, field programmable gate arrays (FPGA), controllers etc. can be connected to this card. Included are thumbscrews for the individual serial ports, so either serial devices with screws or with nuts can be connected to the ports. By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.
Special features
This PCIe card is Windows Server 2019 WHQL certified
• Connectors:
1 x PCI Express x1, V2.0
1 x DB44 female
connecting cable: DB44 male > 2 x serial RS-232 DB9 male
• Serial connector with srews or nuts
• Screw type: #4-40 UNC
• Chipset: Sunix 2212
• Compatible with 16C950 UART
• Data transfer rate: 50 bps - 921.6 Kbps
• FIFO: 128 byte
• Databits: 4, 5, 6, 7, 8
• Stop bits: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Plug & Play
• ESD protection up to 15 kV for all ports
• Operating temperature: 0 °C ~ 60 °C
• Humidity: 5 ~ 95 %
• Cable length incl. connectors: ca. 40 cm
• Dimensions (LxWxH): ca. 88 x 65 x 12 mm
• Windows WHQL certified
• Linux Kernel 2.6.x or above
• Windows 7 / 7-64 / 8.1 / 8.1-64 / 10 / 10-64 / 11
• Windows 10 Enterprise LTSC 2019 / Windows 10 2016 LTSB / Windows 10 S
• Windows Server 2012 / Server 2012R2 / Server 2016 / Server 2019
• PC with one free PCI Express slot
Package content
• PCI Express card
• 4 x thumbscrew
• Low profile bracket
• Driver CD
• User manual
