EAN: 4043619659579

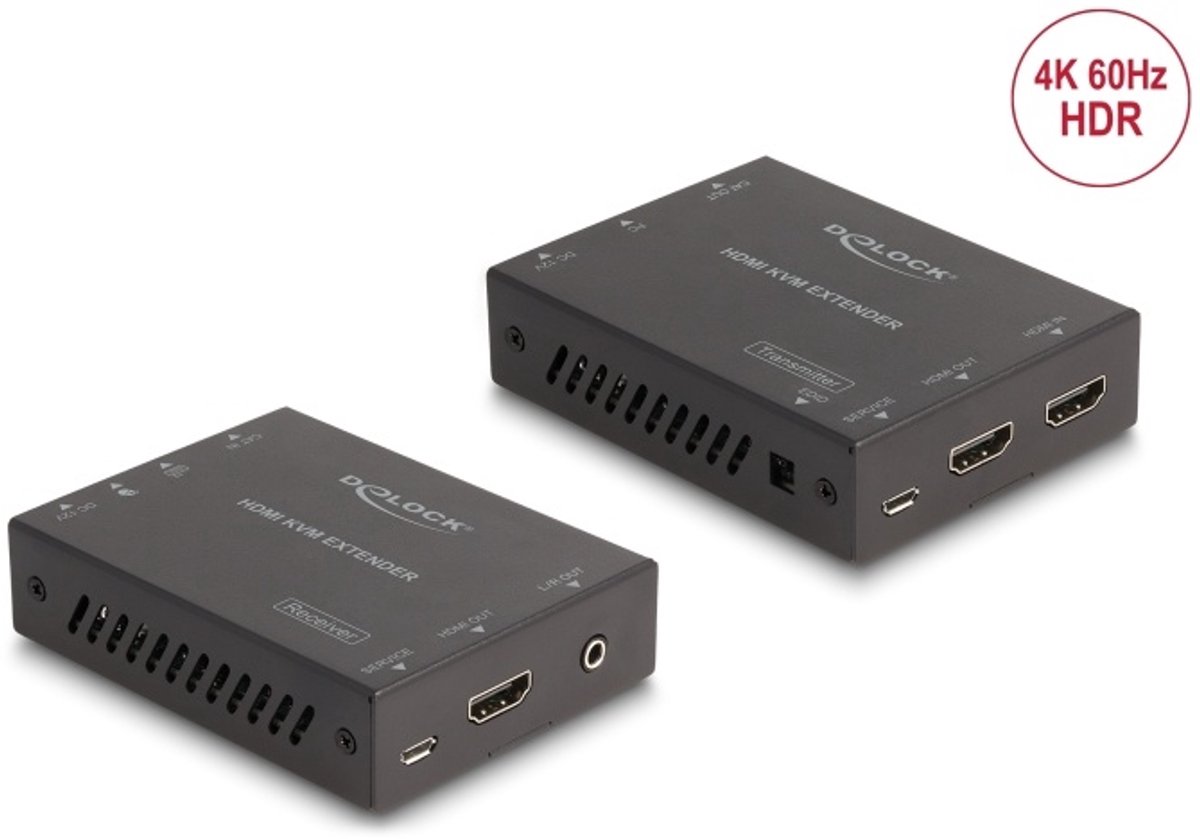

This HDMI extender set by Delock can transmit high-resolution video / audio signals and an IR control signal over a single network cable. At 4K 60 Hz resolution, distances of up to 70 m are possible. The set has wide applications in conference rooms, for tele-education or on large screens.
HDMI loop output
The transmitter has an HDMI loop output, so the signal can be cascaded to the next extender or to a monitor.
KVM function
A USB keyboard and mouse can be connected to the receiver in order to send the signals to a computer connected to the transmitter.
Power over Cable (PoC)
The set supports Power over Cable (PoC), so only one device requires a power supply. The other device is powered via the network cable and can therefore be used more flexible.
The power supply with screwable connector ensures a secure and reliable connection - perfect for professional installations to avoid accidental disconnection.
• Connectors Transmitter:
Input:
1 x HDMI-A female
1 x DC 12 V power connector screwable
1 x USB 1.1 Type-B female
Output:
1 x RJ45 jack
1 x HDMI-A female
• Connectors Receiver:
Input:
1 x RJ45 jack
1 x DC 12 V power connector screwable
Output:
1 x HDMI-A female
1 x 3.5 mm 3 pin stereo jack female (audio)
2 x USB 1.1 Type-A female
• Service port: USB Type Micro-B female
• Transmission of audio and video signals
• Video bandwidth up to 600 MHz / 6 Gbps, max. 18 Gbps
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected hardware)
• Supports EDID management
• HDCP and HDR support
• Supports 7.1 Surround Sound with Dolby® TrueHD and DTS-HD Master Audio™
• Supports PoC (Power Over Cable)
• Operating range up to 70 meter
• Power consumption: max. 4.2 W
• Metal housing
• Wall-mount option
• Colour: black
• Dimensions (LxWxH): ca. 90 x 68 x 22 mm
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A
• Output: 12.0 V / 1.0 A / 12.0 W
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm
• HDMI cable
• One Cat.6 or Cat.6A network cable
Package content
• HDMI transmitter
• HDMI receiver
• Wall mounting brackets
• Power supply
• User manual
