EAN: 8595247906120
AXAGON PCEE-GRF PCI-Express network card adds high speed Gigabit Ethernet connection to your desktop computer. It enables a transmission speed of 10/100/1000 Mbit/s.
The network card is equipped with proven Realtek 8111 chipset. It ensures seamless compatibility with most operating systems.
Gigabit network card connects the computer to the Internet or a computer network, adds the missing RJ-45 connector, add another network card or replaces the original defunct network connection.

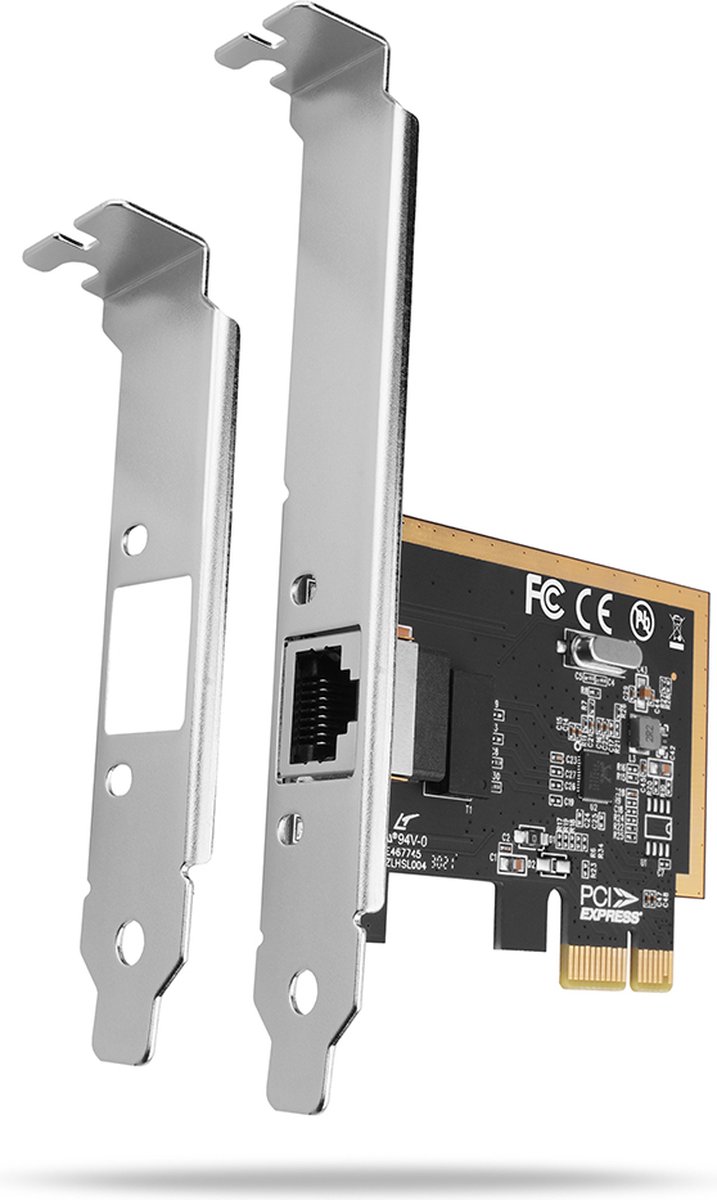

In addition to an adapter with a standard size bracket, the package also includes a low profile bracket which allows the mounting into low profile cases.
Input:
* PCI-Express 1.1 interface, PCI-Express 1.0a / 2.0 / 2.1 / 3.0 compatible.
* Number of lines 1-Lane (x1), compatible with x1 / x4 / x8 / x16 PCIe slots.
* A bandwidth of 1-Lane PCI-Express 1.1 bus 2.5 Gb/s.
Output:
* Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection.
* Supported transmission rates for the Ethernet interface 10/100/1000 Mb/s.
* Supported IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specifications.
Other features:
* Full Plug and Play support.
* 10/100/1000 Mbit/s auto-detection.
* Supports Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) to reduce processor load.
* Supports Segmentation Task-offload (Large send v1 a Large send v2).
* Supports full-duplex transmission s IEEE 802.3x flow control.
* Supports IEEE 802.1P Layer 2 priority encoding.
* Supports IEEE 802.1Q VLAN tagging.
* Supports IEEE 802.3az-2010 (EEE) Energy Efficient Ethernet - reduce power consumption at standby.
* Supports Auto MDI/MDIX - crossover detection and auto-correction eliminate the need for crossover cables.
* Supports hardware ECC (Error Correction Code), CRC (Cyclic Redundancy Check) function.
* Supports Pair Swap/Polarity/Skew Correction.
* Two LEDs for indicating network activity and connection.
* The Realtek RTL8111E/F chipset is used.
Wake-on-LAN support in various modes:
* Supports sleep mode and remote wake up via AMD Magic packet, Microsoft Wakeup Frame, Microsoft Wake Packet Detection and also Link Change wake-up.
* Supports ECMA-393 proxZzzy? standard for sleeping hosts to manage the network connection of sleeping guests using proxy servers.
Advanced Power Management features:
The network card supports advanced power management to reduce losses during standby. It also supports advanced power saving when the Ethernet cable has been disconnected.
* Supports Advanced Configuration Power management Interface (ACPI).
* Supports Power Management offload (ARP & NS).
* Supports PCI MSI (Message Signaled Interrupt) and MSI-X.
Supported operating systems:
MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit versions of OS Windows), MS DOS, MacOS X 10.4.x and higher, Linux kernel 2.4.x / 2.6.x / 3.x / 4.x, FreeBSD 7.x / 8.0 / 9.0, SCO Unix 5.0.6 / 5.0.7, SCO OpenServer 6, UnixWare 7.1.x, Novell server OS 5.x / 6.x, Novell client for DOS (ODI driver).
Package contains:
* PCI-Express Gigabit Ethernet card with a standard bracket,
* low profile bracket,
* multilanguage quick guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
