300W 12V Flexible Solar Panel Kit, 3pcs 100W 18V Monocrystalline Solar Panel System with 30A Solar Charge Controller for RV, Boat, Car, Caravan, Camping, 12V Battery

Product Description Solar Panel Specification Maximum power (Pmax): 100 W Zero load voltage (Voc): 21.8 V Short-circuit current (Isc): 5.83A Maximum supply voltage (Vmp): 18.18 V Maximum Current (Imp): 5.5A Maximum system voltage: 700 V DC Cell efficiency:22% Cell Monocrystalline Size:970x530x2.5mm Weight: 1.7 kg Operating temperature: -40°C to 85°C Standard test conditions: radiation 1000 w/m2, temperature 25 °C, AM=1.5 Portability They are ideal for outdoor activities, camping, boating and other energy needs on the go.

waterproof and heat resistant They are resistant to exposure to the elements, including rain, snow and UV radiation, ensuring long-term use in a variety of outdoor conditions.

Solar Controller Battery voltage: 12V/24V automatic; Charging current: 30A; Discharge current: 10A; USB output: 5V/2AShort circuit protection, open circuit protection, reverse protection, overload protection.

Installation: Step 1: Connect controller and battery.

Step 2: Connect the solar extension cable to the controller.

Tips: One end of the cable must be cut with scissors to allow the copper wire to leak out and connect.

Step 3: Finally, connect the extension cable to the connector of the solar panel.

Step 4: Verify that the entire off-grid system is installed correctly.

The output voltage of a single solar panel is 18V, which is suitable for charging 12V batteries.

Multiple solar panels are connected in parallel to increase the charging current.

Two solar panels supply 36V in series, suitable for charging a 24V battery.

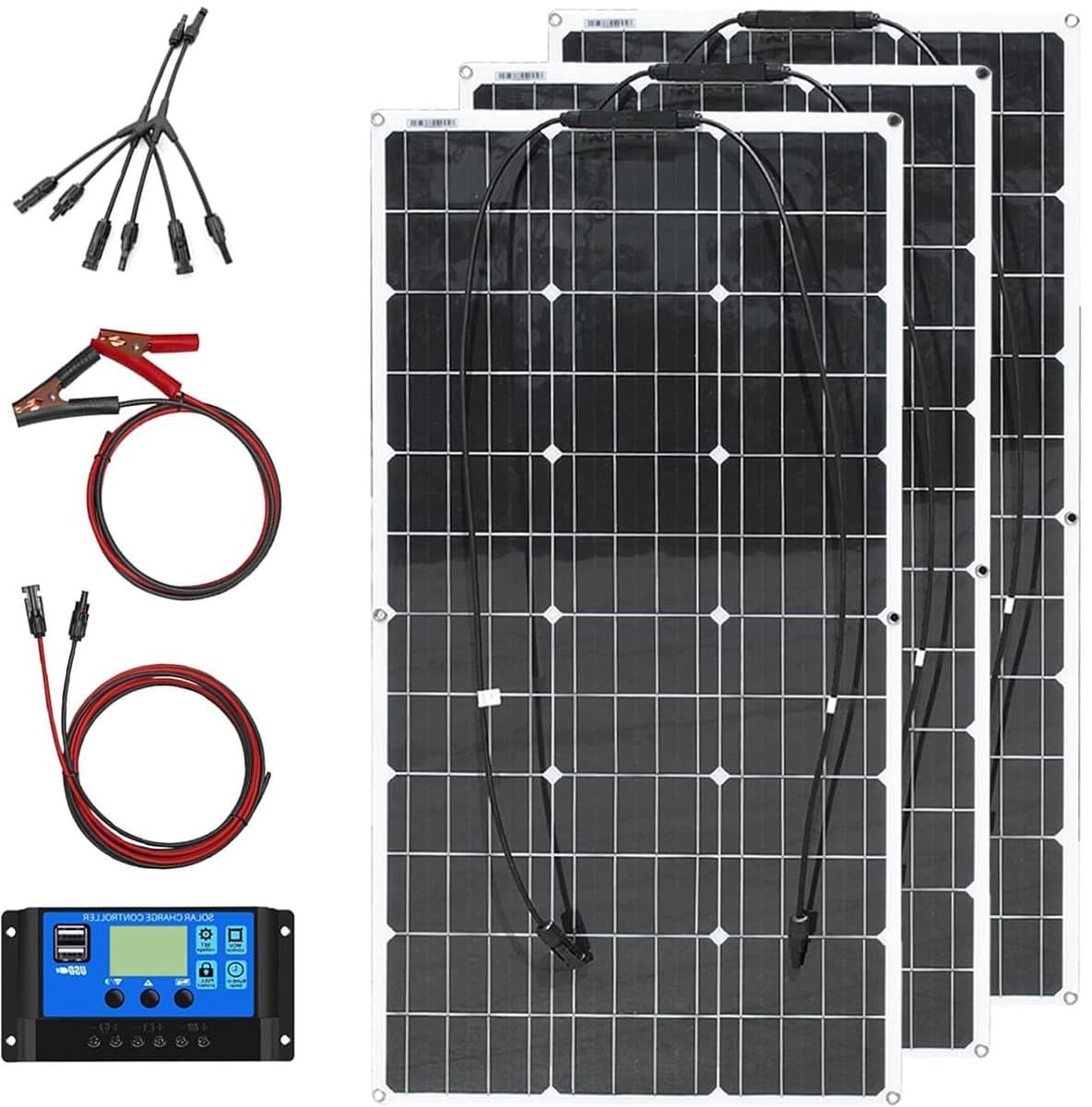

Package includes: 3x100W Flexible Solar Panel 1x30A solar controller 2x 3 in 1 Parallel Adapter 1x3M cable with PV connector 1x1M cable with crocodile clip 30A solar controller cable with crocodile clip cable with PV connector 3 in 1 Parallel Adapter Warm Tips: 1.

Before initial installation, make sure your battery has enough voltage so that the controller can identify the battery type.

2.

The battery cable should be as short as possible to minimize losses.

3.

The regulator is only suitable for lead-acid batteries: Open, AGM, Gel (not suitable for nickel-metal hydride, lithium-ion or other batteries).

4.

The Charge Controller is only suitable for controlling the solar module.

Never connect another charging source to the charging controller.
